EPAuto 12V 40 Amp Off Road LED Light Bar Wiring Harness Kit, 40A Relay / Fuse / ON-OFF Switch
You buy EPAuto 12V 40 Amp Off Road LED Light Bar Wiring Harness Kit, 40A Relay / Fuse / ON-OFF Switch with Coupon : ALEZA will be discounted 10%
.
Why Use EPAuto 12V 40 Amp Off Road LED Light Bar Wiring Harness Kit, 40A Relay / Fuse / ON-OFF Switch ?
Design rich colors to choose fromFind Party Decorations in Harrow on Yell. Get reviews and contact details for each business including phone number, postcode, opening hours and photos.. Anything that uses a needle for construction can be called needlework. This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.EPAuto 12V 40 Amp Off Road LED Light Bar Wiring Harness Kit, 40A Relay / Fuse / ON-OFF Switch will help your job easier dex

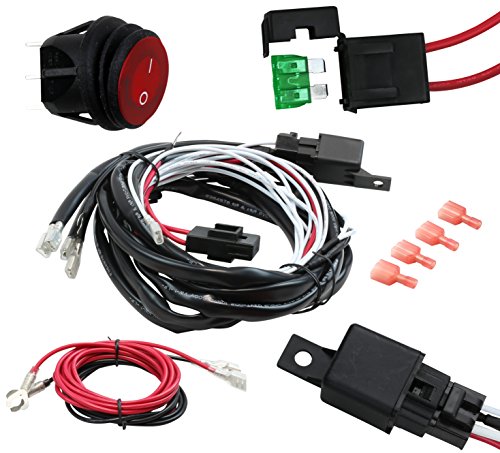

Package Content
- Power Relay (40A)
- Blade Fuse (30A)
- 2 sets of power connectors to light fixtures
- Illuminated Rocker Switch On/Off Rocker LED
- User Manual
Wiring Instructions:
- Choose your desired mounting location for the switch. Mark and drill one 15/16" hole.
- Use a sheet metal screw to mount the relay around the battery. Make sure the RED wire from the relay can be connected to the positive terminal of the battery while the BLACK wire can be grounded to the chassis.
- Connect the WHITE wires to the positive input line of the auxiliary lights.
- Connect the BLACK wires to the ground connection line of the auxiliary lights.
- Connect and install the WHITE wire from the relay to the middle pin of the switch (COPPER colored).
- Link the RED wire to the outer pin (COPPER colored) of the switch then route and connect it to a steady power source. Please make sure to use an in-line fuse rated at a minimum of 3A 12V DC when connecting this power feed wire directly to the battery. As your other option, you can also install this wire into an existing power wire in the cabin or into the cabin fuse box and this will exclude the need of an inline fuse.
- Attach the BLACK wire to the pin of the switch (GOLD colored), route it then connect it to the ground chassis.
- Finally, push the switch into the 15/16" hole that you drilled out (Step 1)
